Non-Inverter

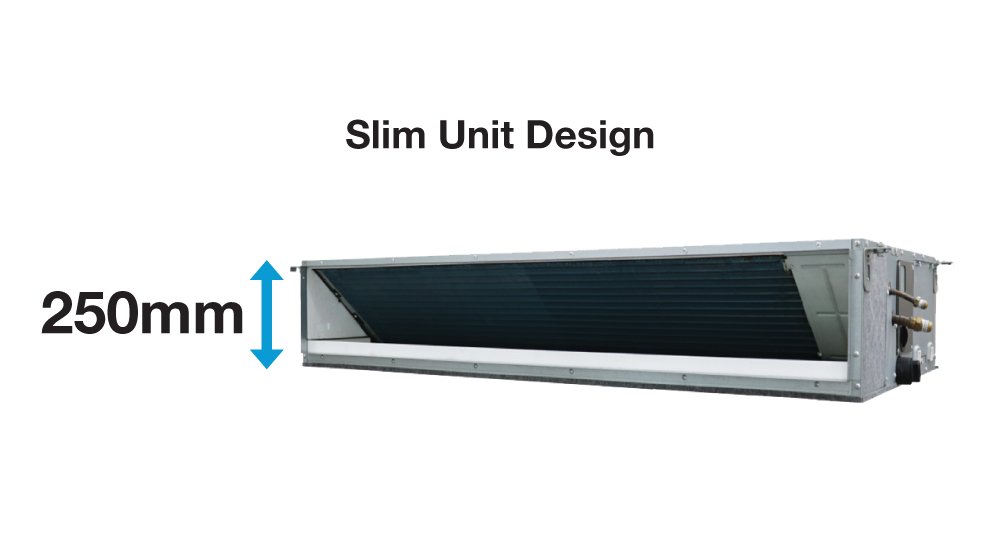

SkyAir Ceiling Concealed Duct (FDMC)
SkyAir Non Inverter
AC Duct tersembunyi non-inverter yang efisien untuk proyek gedung komersial.
- Teknologi
- Non-Inverter

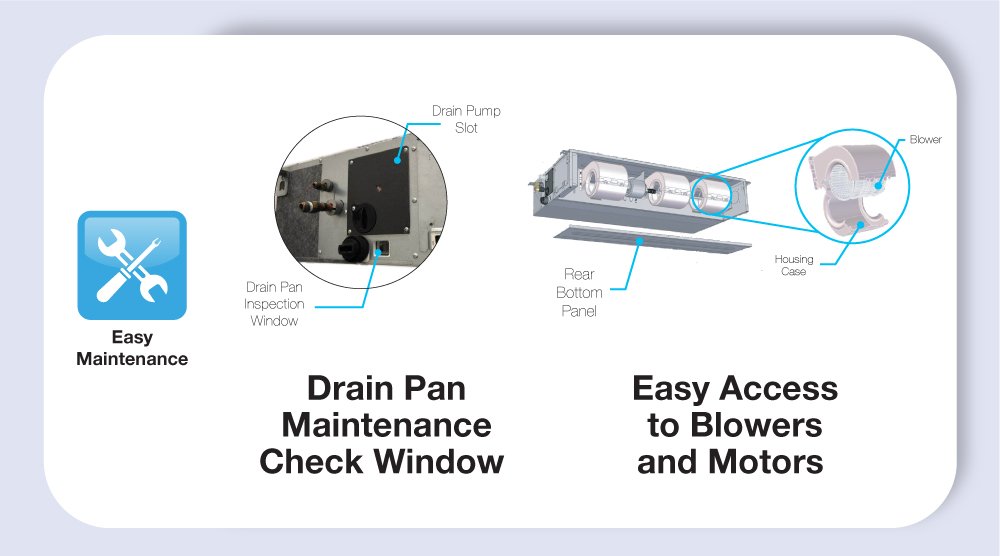

Fitur Unggulan
Spesifikasi Teknis
| Parameter | FDMC50A | FDMC60A | FDMC85A | FDMC85A | FDMC100A | FDMC125A | FDMC140A |
|---|---|---|---|---|---|---|---|
| Nama Model · Unit Indoor | FDMC50A | FDMC60A | FDMC85A | FDMC85A | FDMC100A | FDMC125A | FDMC140A |
| Nama Model · Unit Outdoor | RC50A | RC60A | RC85A (1PK) | RC85A (3PK) | RC100A | RC125A | RC140A |
| Batas Pengoperasian °C | 19-46 | 19-46 | 19-46 | 19-46 | 19-46 | 19-46 | 19-46 |
| Kapasitas Pendinginan (Min. - Maks.) Btu/h | 18500 | 24000 | 30000 | 30000 | 36000 | 42000 | 48000 |
| Kapasitas Pendinginan (Min. - Maks.) Kw | 5.42 | 7.03 | 8.79 | 8.79 | 10.55 | 12.31 | 14.07 |
| EER W/W | 3.23 | 3.3 | 3.24 | 3.26 | 3.28 | 3.4 | 3.43 |
| Total Input Power W | 1680 | 2130 | 2710 | 2700 | 3220 | 3620 | 4100 |
| Total Current A | 7.46 | 9.45 | 11.9 | 4.48 | 5.97 | 6.78 | 7.59 |
| Power Supply V/Ph/Hz | 220-240/1/50 (Power dari outdoor) | 220-240/1/50 (Power dari outdoor) | 220-240/1/50 (Power dari outdoor) | 380-415/3/50 (Power dari outdoor) | 380-415/3/50 (Power dari outdoor) | 380-415/3/50 (Power dari outdoor) | 380-415/3/50 (Power dari outdoor) |
| Unit Indoor · Airflow (H/M/L/Q) CFM | 840/700/560/440 | 890/760/620/490 | 890/760/620/490 | 890/760/620/490 | 1120/1030/890/760 | 1120/1030/890/760 | 1120/1030/890/760 |
| Unit Indoor · External Static Pressure (Std/High) Pa | - | - | - | - | - | - | - |
| Unit Indoor · Sound Pressure Level (H/M/L) Db(A) | 42/39/37/35 | 44/40/37/35 | 44/40/37/35 | 44/40/37/35 | 48/46/43/40 | 48/46/43/40 | 48/46/43/40 |
| Unit Indoor · Dimensi Unit (HxWxD) · Unit mm | 246 x 840 x 840 | 246 x 840 x 840 | 246 x 840 x 840 | 246 x 840 x 840 | 288 x 840 x 840 | 288 x 840 x 840 | 288 x 840 x 840 |
| Unit Indoor · Dimensi Unit (HxWxD) · Packaging mm | 324 x 922 x 922 | 324 x 922 x 922 | 324 x 922 x 922 | 324 x 922 x 922 | 370 x 922 x 922 | 370 x 922 x 922 | 370 x 922 x 922 |
| Unit Indoor · Dimensi Panel (HxWxD) · Panel mm | 69 x 950 x 950 | 69 x 950 x 950 | 69 x 950 x 950 | 69 x 950 x 950 | 69 x 950 x 950 | 69 x 950 x 950 | 69 x 950 x 950 |
| Unit Indoor · Dimensi Panel (HxWxD) · Packaging mm | 147 x 1008 x 970 | 147 x 1008 x 970 | 147 x 1008 x 970 | 147 x 1008 x 970 | 147 x 1008 x 970 | 147 x 1008 x 970 | 147 x 1008 x 970 |
| Unit Indoor · Machine Weight · Unit kg | 22 | 22 | 22 | 22 | 25 | 25 | 25 |
| Unit Indoor · Panel Wight · Panel kg | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
| Unit Outdoor · Sound Pressure Level Db(A) | 52 | 52 | 53 | 53 | 55 | 58 | 60 |
| Unit Outdoor · Dimensi (HxWxD) · Unit mm | 615 x 845 x 300 | 615 x 845 x 300 | 695 x 930 x 350 | 695 x 930 x 350 | 852 x 1030 x 400 | 852 x 1030 x 400 | 852 x 1030 x 400 |
| Unit Outdoor · Dimensi (HxWxD) · Packaging mm | 679 x 992 x 414 | 679 x 992 x 414 | 760 x 1084 x 473 | 760 x 1084 x 473 | 995 x 1136 x 516 | 995 x 1136 x 516 | 995 x 1136 x 516 |
| Unit Outdoor · Berat Mesin kg | 40 | 46 | 56 | 57 | 64 | 79 | 84 |
| Koneksi Pipa · Liquid mm | 6.4 | 6.4 | 9.5 | 9.5 | 9.5 | 9.5 | 9.5 |
| Koneksi Pipa · Gas mm | 12.7 | 12.7 | 15.9 | 15.9 | 15.9 | 15.9 | 15.9 |
| Panjang Pipa Maksimal m | 35 | 35 | 50 | 50 | 50 | 50 | 50 |
| Elevasi Pipa Maksimal m | 20 | 20 | 30 | 30 | 30 | 30 | 30 |
| Heat Insulation | Both liquid and gas piping | Both liquid and gas piping | Both liquid and gas piping | Both liquid and gas piping | Both liquid and gas piping | Both liquid and gas piping | Both liquid and gas piping |
Produk Terkait
Estetika Mewah

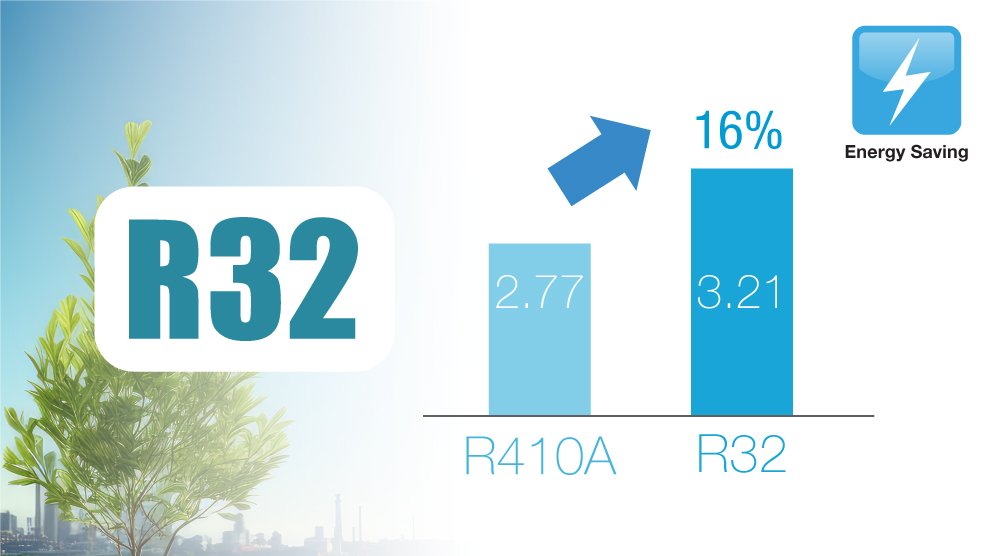

Hembusan Udara NyamanMode SenyapRefrigerant R32
